Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100
This type of intermediate spot faced low-rise pedestal for compact cylinders is made in order to comply with the ISO 21287 reference standard for cylinders. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.
Product structure

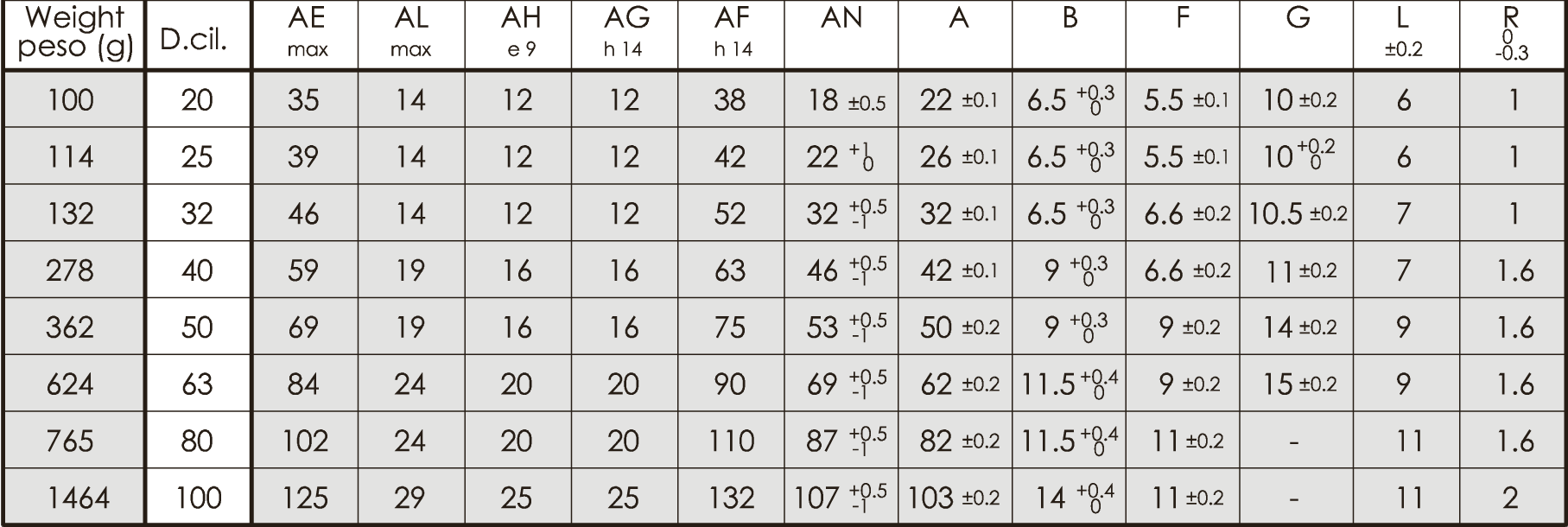

Data sheet
Technical Specifications: the intermediate spot faced hinge for ISO 21287 compact cylinders is sold with code
- US75 | STEEL ASTM A-105 Standard ISO 15552
Field of use: the intermediate spot faced hinge is used for mounting COMPACT ISO 21287 pneumatic cylinders and must be mounted on the central part of the cylinder using threaded rods or bolts.
Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.
Customisation the intermediate spot faced hinge for ISO 21287 compact cylinders can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), packaging.
