Material: STAINLESS steel (AISI 316)
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125
This type of narrow rear female hinge is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

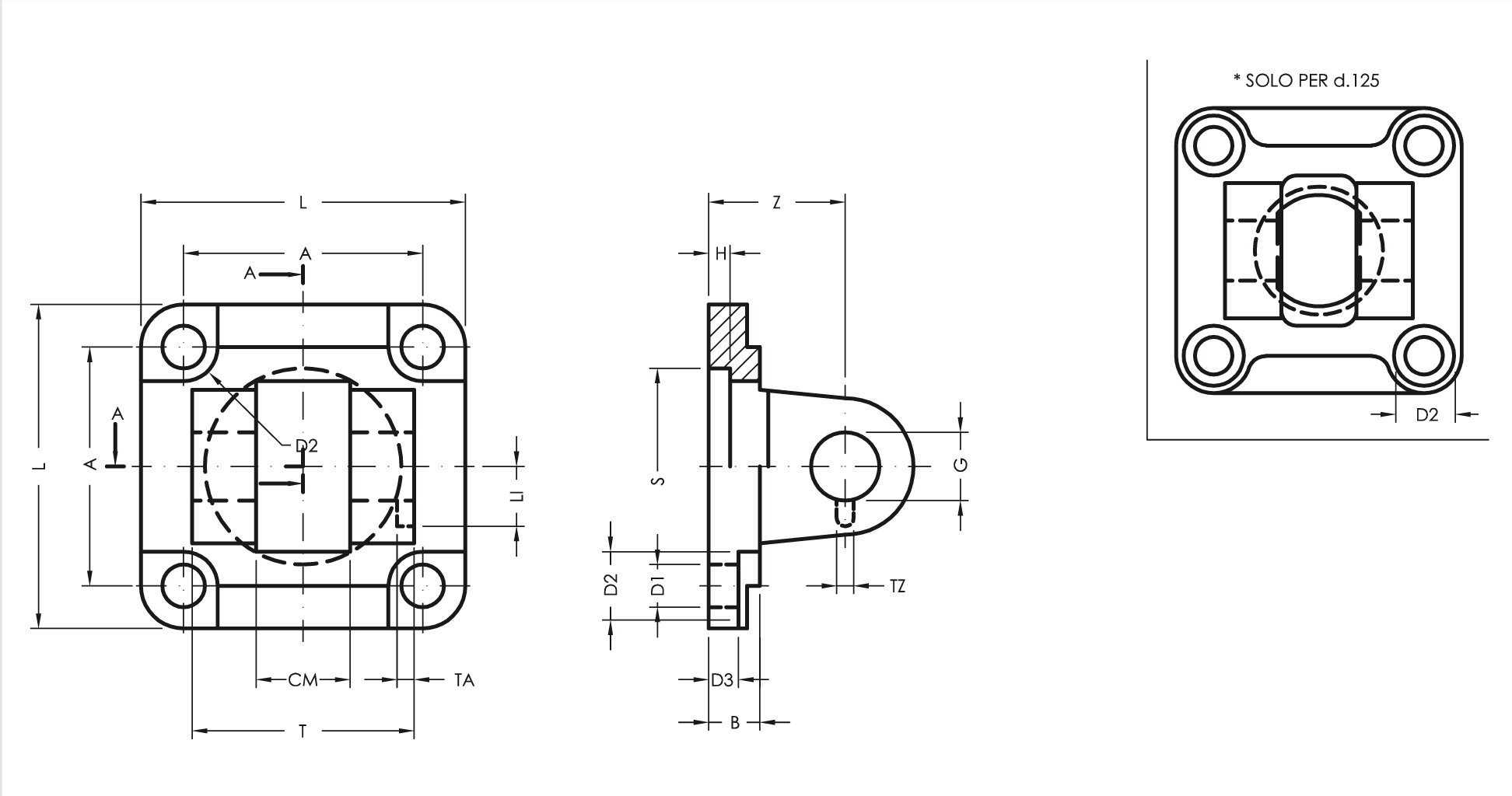

Product structure
Data sheet
Technical Specifications: the MP2 narrow female hinge can be sold in two different variants
- USIN13 AISI 316 STEEL
- US13 ASTM A-105 STEEL
Field of use: the MP2 narrow female hinge is used for ISO 15552 pneumatic cylinder/actuator assembly. It is intended to be mounted on the rear end of the cylinder. The MP2 narrow rear female hinge is fixed to the cylinder with 4 screws and works in combination with our MP4 narrow rear male hinge (see our article IN18). The steel pin (article IN12, fixed with 1 seeger) connects the MP2 and MP4 parts, making standard application perfect.
Advantages: the use of STAINLESS steel ensures that the application is solid and resistant. INOX AISI 316 stainless steel protects the part against potential corrosion in the event of use in harsh environments and makes it perfect for use in the food industry.
Customisation: the MP2 narrow rear female hinge can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components, packaging.
