Material: Aluminium EN AB and AC 46100 – Al Si Cu 2 (Fe)
Standard Finish: Rough – Grey (the finished part is tapped)
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125 – 160 – 200 – 250 – 320
This type of MP4 narrow rear male hinge with DIN648K articulated head is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.
Product structure

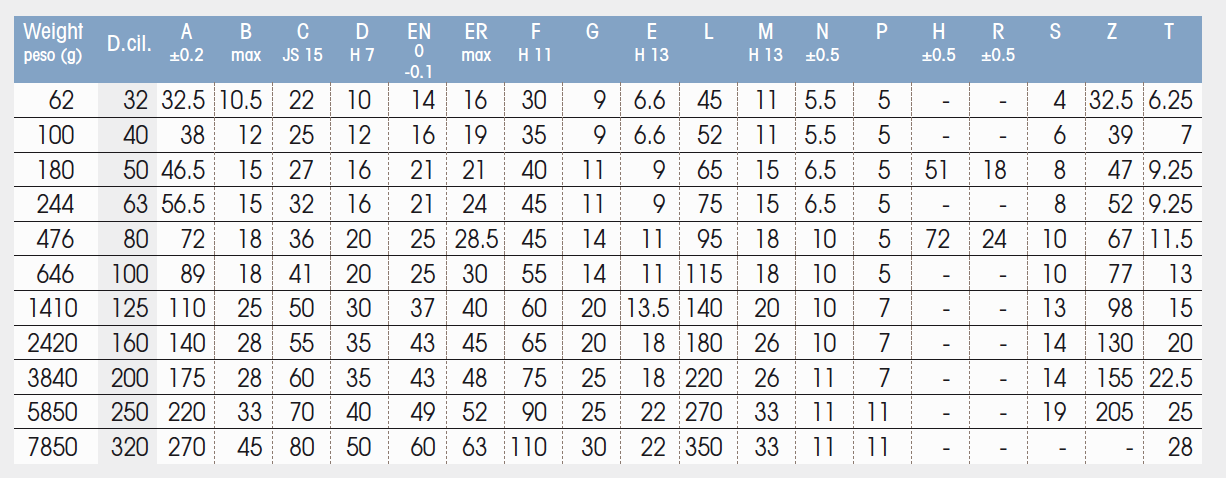

Data sheet
Technical Specifications: the MP4 narrow rear male hinge with DIN648K articulated head is sold in two different variants
- US53 – with DIN648K steel joint
Field of use: the MP4 narrow rear male hinge with DIN648K articulated head is used for ISO 15552 pneumatic cylinder/actuator assembly. It is intended to be mounted on the rear end of the cylinder. The MP4 narrow rear male hinge with DIN648K articulated head is fixed to the cylinder with 4 screws and works in combination with our MP2 narrow rear female hinge (see our article 0056). The steel pin (article 0012, fixed with 1 seeger) connects the MP2 and MP4 parts, making standard application perfect.
Advantages: the use of aluminium makes the application lighter. Resistance is guaranteed according to ISO 15552 standards, with the possibility of requesting the results of our strength tests carried out by our specialised technicians.
Customisation: the MP4 narrow rear male hinge with DIN648K articulated head can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components, packaging.
