Material: Steel (ASTM A-105)
Standard Finish: White galvanising
Possible coatings: Black electrophoresis, Anodising
Available in the following sizes: 32 – 40 – 50 – 63 – 80 – 100 – 125
This type of RP107P AB7 square joint for DIN 71752 fork is made in order to comply with the ISO 15552 reference standard. All parts are manufactured and assembled at our headquarters in Italy and are subjected to strict quality controls in our laboratories under the supervision of our technical staff.

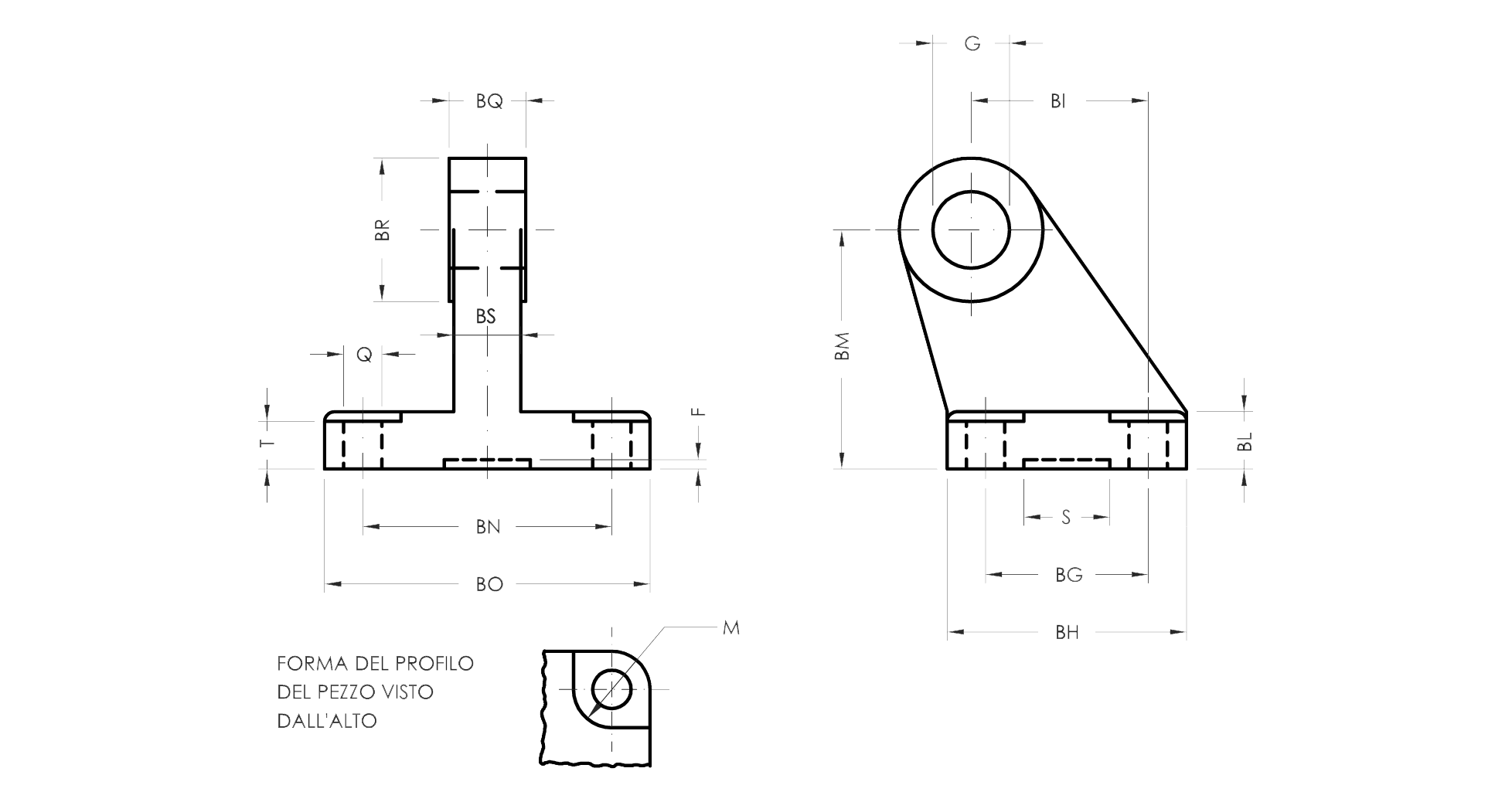

Product structure
Data sheet
Technical Specifications: RP107P AB7 square joint is sold with the following article
- US05bis – without bushings (bushings are available upon specific request but will bill processed as a special part)
Field of use: the RP107P AB7 square joint for DIN 71752 fork is used for ISO 15552 pneumatic cylinder/actuator assembly. It is intended to be mounted on the rear end of the cylinder.
The RP107P AB7 square joint for DIN 71752 fork is fixed to the cylinder with 4 screws and works in combination with our MP2 rear female hinge (see our article 0003 or 0050). The steel pin (article 0007, fixed with 2 seegers) connects the AB7 and MP2 parts, making standard application perfect.
Advantages: the use of steel ensures that the application is solid and resistant. The white zinc coating protects the part from potential corrosion when used in harsh environments.
Customisation: the RP107P AB7 square joint for DIN 71752 fork can be customised to suit your needs in terms of geometry (dimensions and tolerances), finish (protective treatments), components (bushings), packaging.
